ATS29931
毫米波相控阵卫通芯片
27.0 GHz to 31.0 GHz 16-Channel Transmit/Receive Beamformer
The ATS29931 is a TRX beamforming RFIC with 27.0 GHz to 31.0 GHz frequency range, designed for application in mmWave and Ka-Band SATCOM planar phased array antennas. The IC is highly integrated and contains 16 independent transmit and receive channels. Each transmit and receive channel includes a vector modulator (VM) to control the phase, and a digital variable gain amplifier (DVGA) to control the amplitude. The VM provides 6 bits of resolution for phase control, and DVGA offers 5 bit of resolution for gain control. The ATS29931 can be programmed using a 3-wire or 4-wire serial port interface (SPI), the SPI protocol operates up to 100MHz with fast beam switching and fast beam-state loading.
Key Features
RF range: 27.0 GHz to 31.0 GHz
4-stream 4-element TRX with 16 channels
Matched to 50 Ω, single-ended RF inputs and outputs
TX gain: 38 dB
TX PSAT: 21.2 dBm
TX P1dB: 19.8 dBm
TX PAEPEAK: 23.6 %
RX gain: 32 dB
RX NFmin: 3.8 dB
RX PDC: 135 mW
High resolution, 6-bit VM for phase control
High resolution, 5-bit DVGA for amplitude control
Two power supplies required: 2.4V and 1.2 V
3-wire or 4-wire SPI that supports up to 100 MHz SPI clock speed
Chip die size: 4.1 mm × 2.3 mm
Applications
Phased array antennas
mmWave/Ka-band SATCOM application

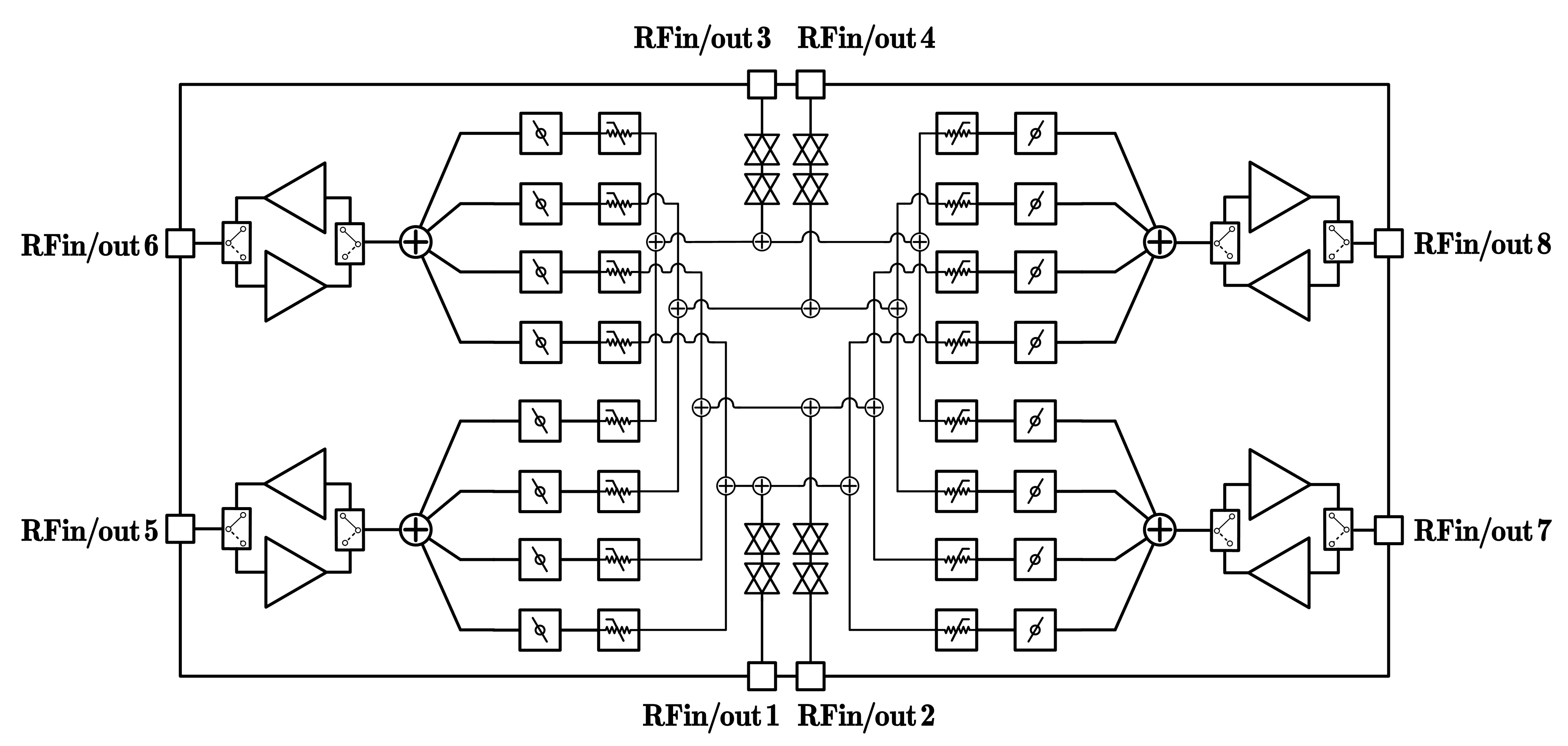

Block Diagrams
