ATS29916
24.75 GHz至27.5 GHz 16通道发射/接收双极化波束形成器
24.75 GHz to 27.5 GHz 16-Channel Tx/Rx Dual Polarization Beamformer
The ATS29916 is a mmWave 5G transmit and receive beamformer IC with RF range from 24.75 GHz to 27.5 GHz. The RF integrated circuit (RFIC) is highly integrated and contains 16 configurable transmit and receive channels. A horizontal and vertical polarization transmit mode and receive mode control pin is provided for fast switching between transmit mode and receive mode. The vector modulator provides a full 360° phase adjustment range in either TX or RX mode to provide 6bits of resolution for 5.6° phase steps. The ATS29916 can be programmed using a 3-wire or 4-wire serial port interface (SPI), the SPI protocol operates up to 100MHz with fast beam switching and fast beam-state loading.
Key Features
RF range: 24.75 GHz to 27.5 GHz
16 configurable transmit and receive channels
High resolution, 6-bit VM for phase control
High resolution, 5-bit DVGA for amplitude control
Matched to 50 Ω, single-ended RF inputs and outputs
Two power supplies required: 2.4 V and 1.2 V
3-wire or 4-wire SPI that supports up to 100 MHz SPI clock speed
Operation Temperature: -40 ~ 95°
Chip die size: 5.0 mm × 6.0 mm
TX gain: 32 dB
TX OIP3: 28 dBm
TX PAEPEAK: 25 %
TX DVGA Dynamic Range: 31.5 dB
TX gain step error: ≤ ± 0.2 dB
Power consumption per channel: 240 mW
Pout@3% EVM (400MHz bandwidth)：14 dBm
RX gain: 24 dB
RX NF: 3.8 ~ 5.0 dB
RX DVGA Dynamic Range: 31.5 dB
Applications
mmWave 5G application
Wireless infrastructure
5G NR, RAN and CPE
Phased array antenna
Broadband communication

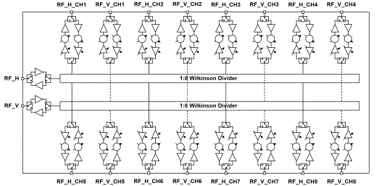

Block Diagrams
