ATF61501-11
5 GHz Power Amplifier
The ATF61501-11 is power amplifier (PA) designed for 5.1~5.9GHz frequency range, compatible with 802.11ax/802.11ac wireless LAN system. The device is manufactured based on advanced InGaP/GaAs HBT
(Hetero-junction Bipolar Transistor) process. The amplifier consists of 3 gain stages with inter-stage matching, build-in input matching network, and a power detector for close loop power control operation.
The device is provided in a tiny industry standard 16-lead surface mountpackage QFN 3mmX3mm.
Key Features
Frequency Range: 5.15-5.925 GHz
Supply voltage: 5V
Small signal gain: 32 dB
Psat: 30.5 dBm
Output power
– MCS11, +20.5 dBm, -43 dB DEVM
– MCS11, +21.5 dBm, -40 dB DEVM
– MCS9, +23 dBm, -35 dB DEVM
– MCS7, +24 dBm, -30 dB DEVM
Small QFN (16-pin, 3 × 3 mm) package
(MSL3, 260 °C per JEDEC J-STD-020)
Applications
High Power WLAN applications
IEEE 802.11ax Wireless LAN System
5GHz ISM Band Application
5GHz Cordless Phones

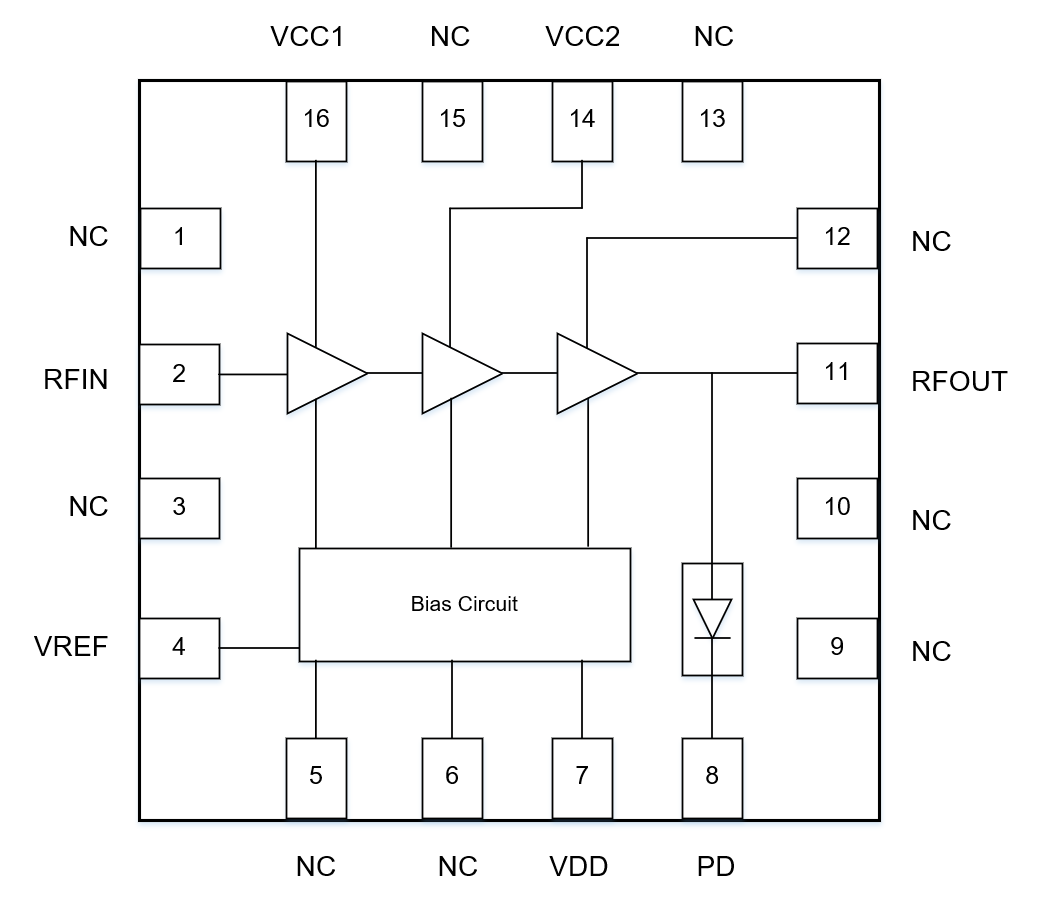

Block Diagram
