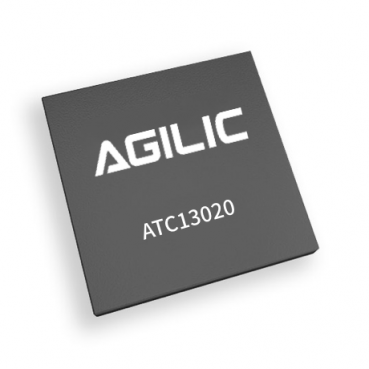

ATC13020
Ultra-Low Phase Jitter Differential MEMS Oscillator
The ATC13020 is a differential oscillator with an integrated MEMS resonator, which is engineered for low-jitter applications.
The device also integrates multiple on-chip regulators to filter power supply noise, no need for an external dedicated LDO.
The ATC13020 can be factory programmed for specific combinations of frequency, stability, output signaling, voltage, and output enable functionality. Programmability enables designers to optimize clock configurations while eliminating long lead times and customization costs associated with quartz devices where each combination is custom built.
The wide frequency range and programmability makes this device ideal for communications, enterprise, and industrial applications that require a variety of frequencies and operate in noisy environments.
Key Features
General：
Frequency range(fo): 2.5GHz、1.25GHz、625MHz
312.5MHz、156.25MHz
Output: LVDS
Supply voltage: 2.5 V Typ. / 3.3 V Typ.
Frequency tolerance: ±20 ppm
Lower phase jitter: <70 fs Typ. (fo = 156.25 MHz)
Lower phase noise: -160.64@1MHz ( fo=2.4GHz)
Operating temperature: -40 °C to +105 °C
2.5 x 2 mm x mm package (Contact AGILIC
Technologies for 2 x 1.6, 3.2 x 2.5 mm x mm package)
Applications
100G/200G/400G/800G network equipment
Optical modules
Data center
Network switches, routers
Industrial networking equipment
Server and storage systems
Test and measurement equipment
Block Diagrams
